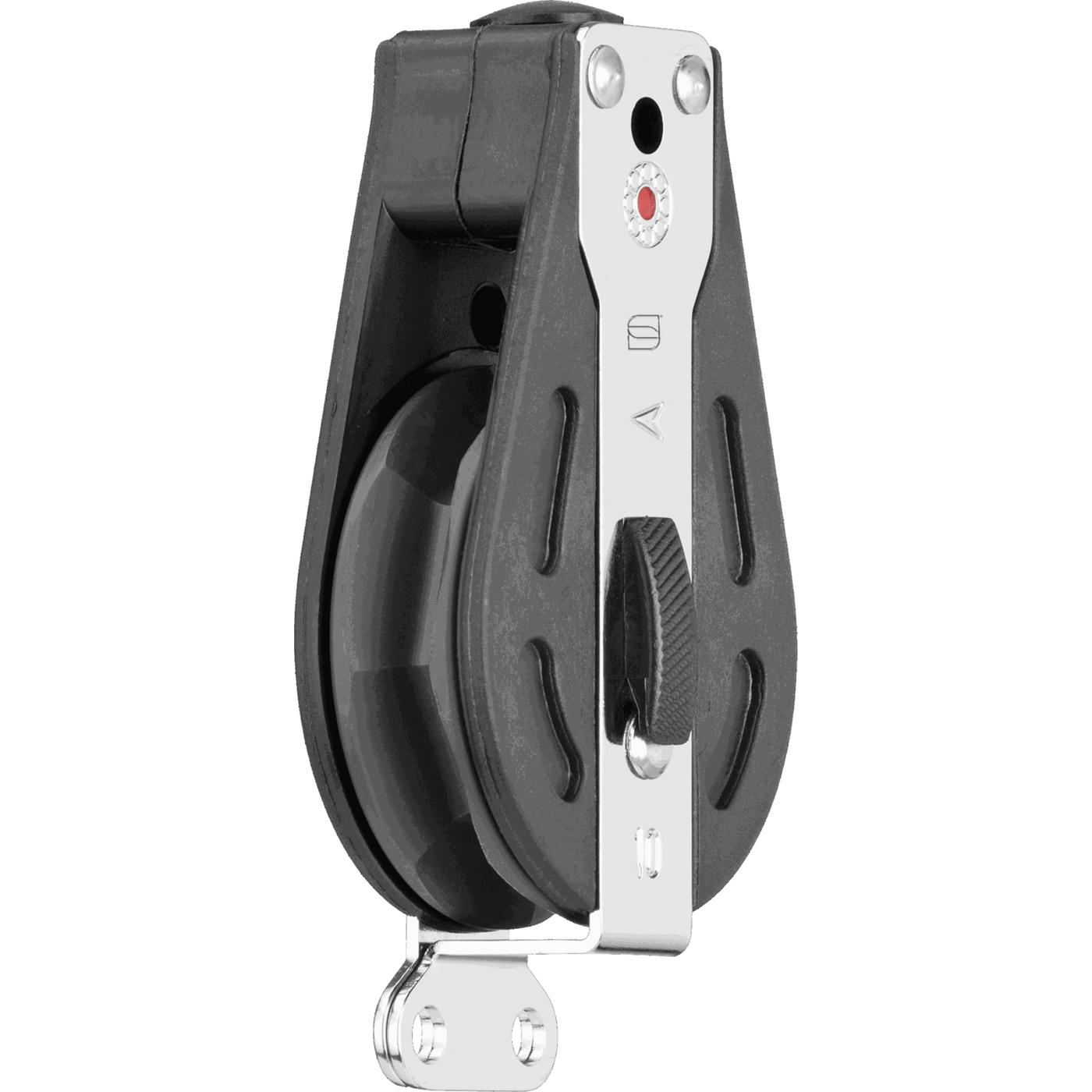

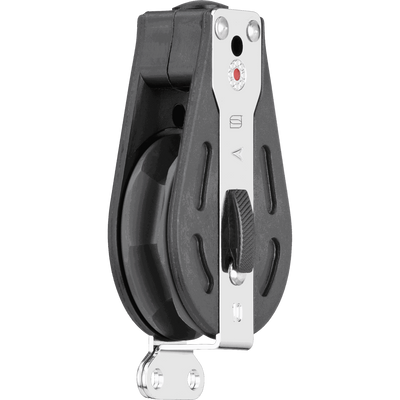

Ratchet block cheek block starboard ball bearing 6-10 mm - 1 sheave
Tax included. Shipping calculated at checkout
smooth-running Delrin ball bearing (red point = ball bearing) in the outer collar and enhancing strap of stainless steel
marking of the maximum rope Ø in the enhancing strap
wobble riveting avoids sharp burrs at the rivet head
cheek parts and sheaves of high quality UV-resistant plastic
sheaves of specially coated aluminum amd Shackle swiveling or fixable
low weight and excellent price/performance ratio
Description
Description
Horizontal ratchet block (right ratcheting) for 6-10 mm rope with a special coated aluminium pulley. The shape-retaining stainless steel tab shows the type of bearing used and the maximum rope thickness at a glance.
Further advantages at a glance:
- side parts made of UV-resistant, glass-fibre reinforced plastic
- dimensionally stable, continuous stainless steel strap for added stability and safety
- indication of the type of bearing used and maximum rope thickness on the stainless steel tab
- no sharp ridges on the rivet head thanks to tumble riveting
- »Made in Germany« - manufactured in our own factory in Iserlohn, North Rhine-Westphalia
- constant quality checks - before, during and after production
- excellent price/performance ratio
Material & care
Material & care
How do I care for Sprenger products?
It is best to thoroughly rinse sand, dirt and salt crystals out of the product with tap water, especially after use in salt water. All moving parts on blocks and sheet clamps, ball bearings, plain bearings and needle bearings should be greased with marine spray after cleaning.Plastic
Our plastic is UV-resistant and fiberglass-reinforced to ensure maximum stability and safety.Features
Features
SKU
3538171055
EAN
4022853117854
Self-Service-Card
Yes
Addition
starboard
Ø
5 mm
L1
98 mm
B1
22 mm
L2
81 mm
Weight
110 g
Rope
6 - 10 mm Ø
B2
16 mm
360° rotatable
No
Cheek parts
Plastic
Bearing
Plastic ball bearing
Amount of sheaves
1
Material sheaves
Aluminum
Type of blocks
Cheeck block
Sheave
51 x 13 mm
Working load
225 kg
Breaking load
900 kg
Ratchet block cheek block starboard ball bearing 6-10 mm - 1 sheave
Sale price107,40 €
