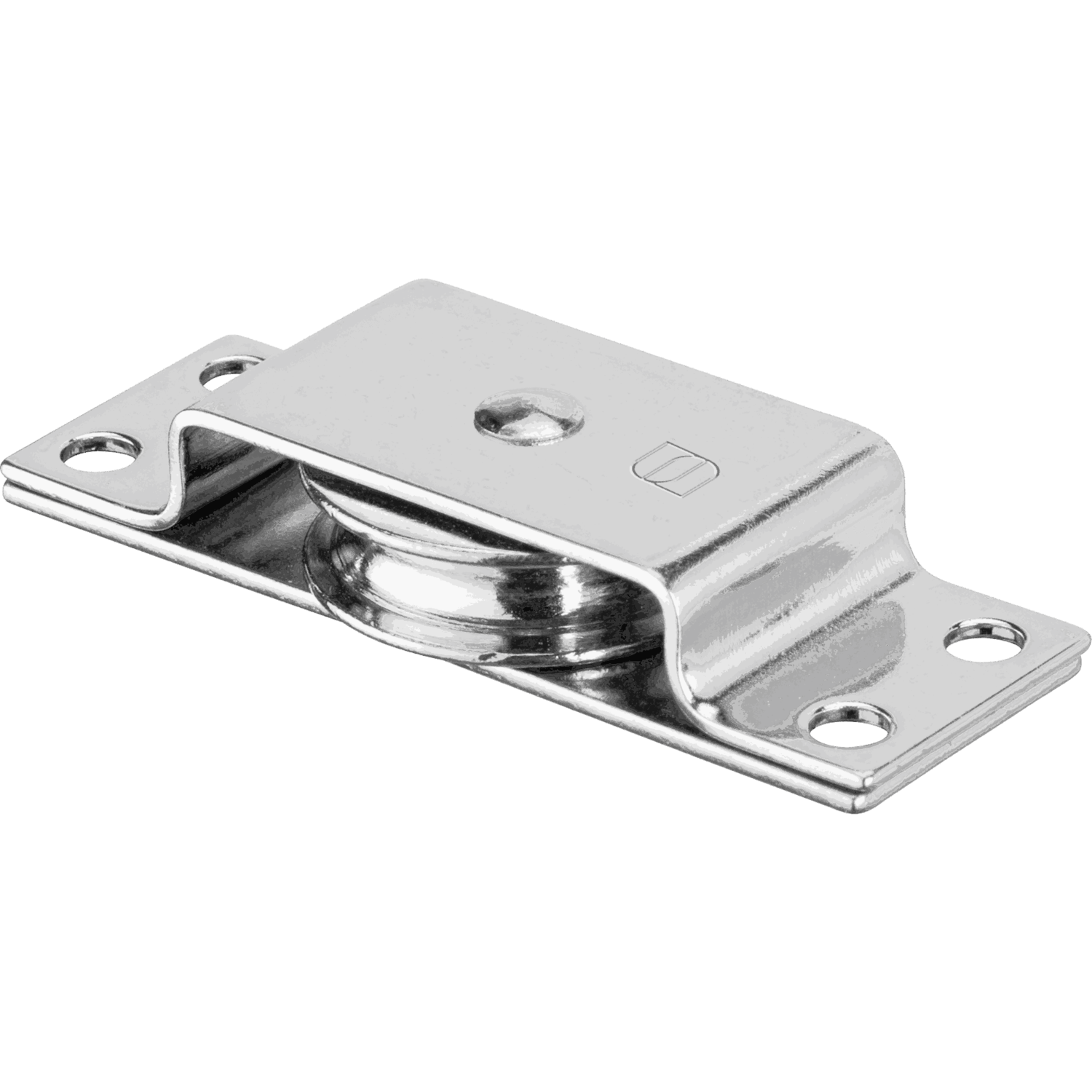

Cheek block sliding bearing for wire 4 mm - 1 sheave

Name: Cheek block sliding bearing for wire 4 mm - 1 sheave
Brand: Sprenger
SKU: 3513100055
Price: 26.15 EUR
Availability: OutOfStock

26,15 €

Tax included. Shipping calculated at checkout

Sold out

sliding bearing strongly loadable

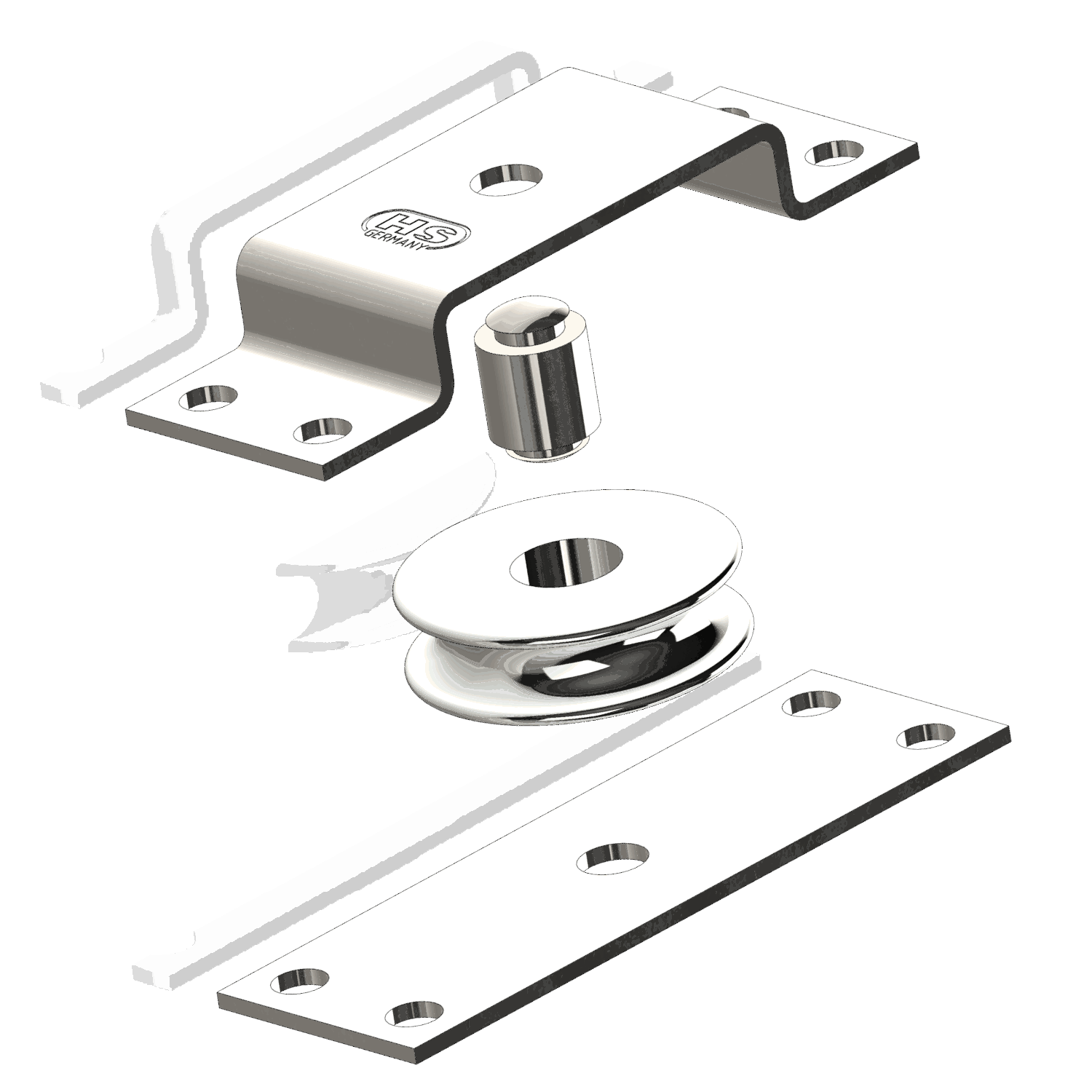

wobble riveting avoids sharp burrs at the rivet head

cheek parts and cage made of stainless steel

sheaves brass nickeled, especially suitable for wire and Dyneema

compact shape and versatile application fields in water sports, industry and DIY

low weight and excellent price/performance ratio

Description

Cheek block for 4 mm wire or dyneema with riveted pulley made of brass, nickel-plated. Four boreholes make mounting on board easy.

Further advantages at a glance:

side parts and pulley made of UV-resistant, glass-fibre reinforced plastic

no sharp ridges on the rivet head thanks to tumble riveting

»Made in Germany« - manufactured in our own factory in Iserlohn, North Rhine-Westphalia

constant quality checks - before, during and after production

excellent price/performance ratio

Material & care

How do I care for Sprenger products?

It is best to thoroughly rinse sand, dirt and salt crystals out of the product with tap water, especially after use in salt water. All moving parts on blocks and sheet clamps, ball bearings, plain bearings and needle bearings should be greased with marine spray after cleaning.

Stainless steel

With our SPRENGER products made of stainless steel, we offer you the best quality and stability. The combination of high-quality stainless steel and continuous quality control ensures that our premium products meet all requirements for use in sailing.

Features

SKU

3513100055

EAN

4022853013873

Self-Service-Card

Yes

Weight

45 g

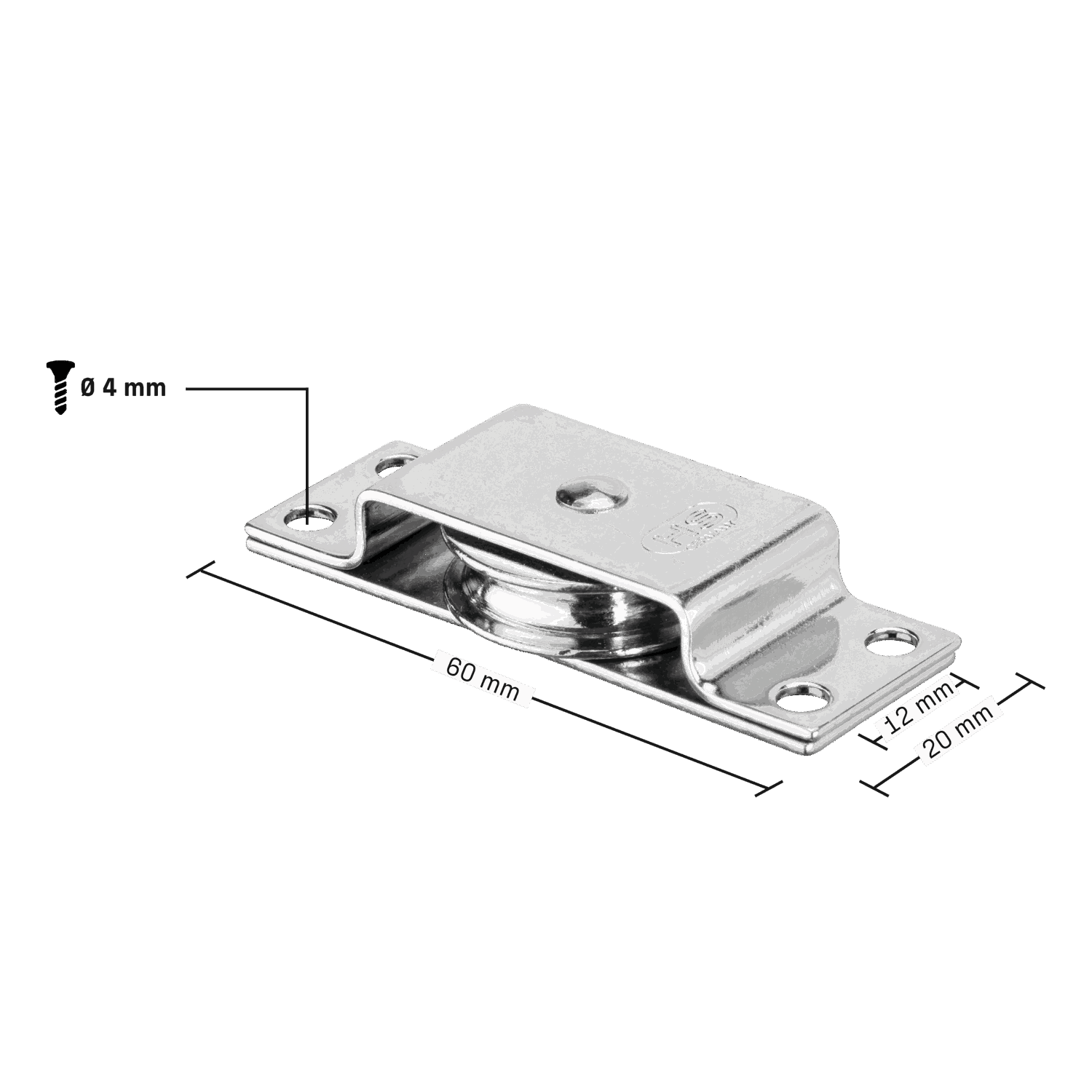

Ø

4 mm

H1

10 mm

L1

60 mm

B1

20 mm

Working load

225 kg

Breaking load

900 kg

L2

51 mm

max. Wire

4 mm Ø

B2

11.6 mm

Amount of sheaves

1

Sheave

25 x 7 mm

Material sheaves

brass, nickel-plated

Bearing

Sliding bearing

Plain bearing

In a simple plain bearing, the block washer runs on an axle. The washer material is made of nylon or other sliding materials, for example. When using high-quality material and an axle with the largest possible diameter, these "simple" blocks are very durable, maintenance-free and roll evenly well. This type of bearing is particularly suitable for standing loads.

Highly resilient

perfect for wire

Our pulleys for wire rope are fitted with high-quality pulleys made of nickel-plated brass, which are particularly suitable for use with wire or Dyneema.

Industrial blocks

Do you have a sophisticated project and need high-quality pulleys for your project? In our comprehensive range you will find a variety of blocks with high-quality components "Made in Germany".
